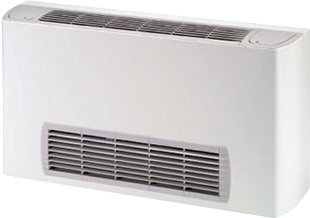

- Cabinet (for versions VM1-VM2-VM3-VM4-VM5-OM1-OM2-OM3 only) Beautiful, smart, modern styled cabinet well proportioned smoothed outline to perfectly match with any interior decoration. Standard white colour (similar to RAL 9010), or any other RAL colour on request (additional charge). Thermo acoustic internal insulation (class M1). Well-balanced proportions, just 220 mm thick. Air delivery grill by fixed fins, adjustable on 2 positions (air flow can be reversed rotating grill by 180°). Grill made of grey ABS (similar to RAL 7035), equipped with small sliding side for easily access to the internal control panel (the control panel is an option).
- Bearing structure made of extremely thick galvanized steel-sheet with holes for mounting on wall/ceiling + internal thermal-acoustic insulation (class M1).
- Drain pan provided with condensation drain and thermal insulation (class M1). Only for vertical versions: Condensation Drain Funnel with Ø 20 mm pipe, realized in plastic material (standard supplied in the same side of the water connections) terminating externally to the unit side, for an easy and fast connection to the condensation drain pipe.
- Coil with high efficient (Turbolenced Fins with a high number of Reynolds) made of copper pipes and aluminium fins fixed by mechanical expansion. Coil connections provided with anti-torsion system, manual air vent valves, manual water drain valves. Standard connections on the left side; on request (no additional charge) connections on the right side, anyway can be easily reversed even on working site. 1 coil for a 2-pipe system; 2 coils for a 4-pipe system. Coils tested at 30 Bar pressure, suitable to work with water at max 15 Bar pressure.
- Fan section including 1, 2 or 3 centrifugal fans with double air inlet Last Generation Plastic Blades (forward curved fins) directly coupled to the electric motor. Mounted on elastic and anti vibration supports. Fan section statically and dynamically balanced. Extensive diameter fans (= high air flow and high static pressure) with low revolutions (= low noise level). Electric motor provided with heat protection (Klixon), running capacitor permanently switched on, IP 42, Class B, electric cables protected by double insulation. Manufactured according with international standards, 230V – 1Ph – 50Hz. 6 speeds obtained through an Autotransformer, with connected 3 middle speeds (= product flexibility, with possible higher or lower “spare” speeds according with the specific needs).
- Air filter easy to remove, made of a metal frame holding filtering section. Can be regenerated by water wash, blowing, suction. Made of acrylic polyester fabric, being resin treated, highly efficient. Superlative against Powders and Pollens. Class M1; filtering level EU3 (EUROVENT 4/5).
